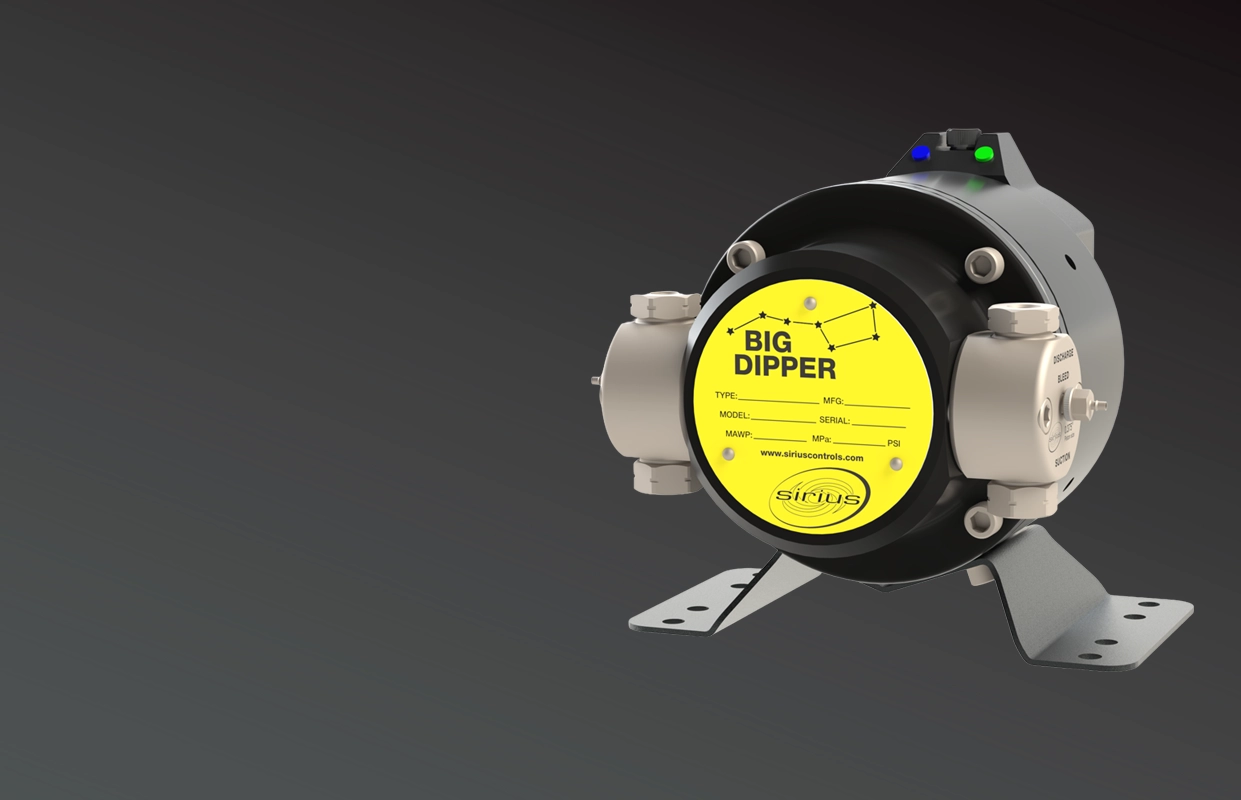

Big Dipper
Engineered for cost-sensitive applications that do not require a full-featured controller, the Big Dipper delivers the same core Sirius principles trusted across the field: precise injection rates, intelligent design, and proven long-term reliability.
- Overview
- Resources
Features
- Variable-speed control with top-mounted dial for precise low-rate injection and easy adjustment
- Intuitive status indicators for for quick, at-a-glance system monitoring
- Advanced seal technology with average 4-year seal life and no tightening required

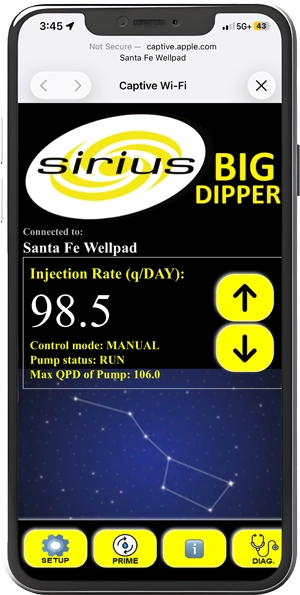

- Built-in web interface to adjust and monitor injection rates from any device on-site with no internet required.
- COMING SOON: Remote-ready capability with optional Cruise system for monitoring and control via Modbus or Connect™
Design Specification
- Motor Type: Brushless DC motor
- Maximum Pressure: 2000 psi
- Maximum Rate: 200 Q/day (dual-head), 100 Q/day (single-head)
- Power Input: 12/24VDC or 120VAC
- Hazardous Ratings: General purpose
