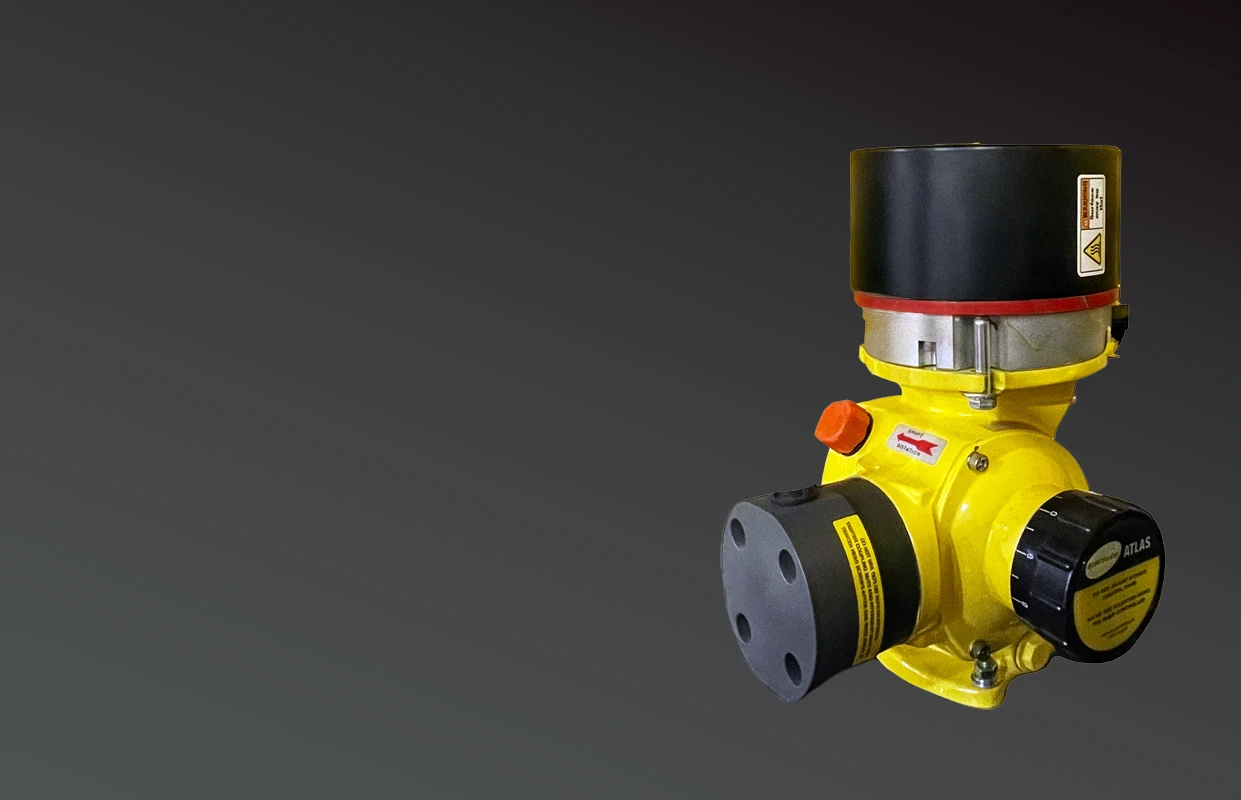

Atlas™
Designed for the most demanding applications, the Atlas™ chemical pump delivers precise, automated chemical injection in harsh operating environments. Built to handle corrosive, reactive, and off-gassing fluids, it features a 100% metal-free wetted design for superior chemical compatibility and reliability. From high-volume transfer to precise injection, it gives operators the confidence to run critical processes without interruption.
- Overview
- Resources
Features
- Metal free wetted design eliminates corrosion and extends equipment life.
- Compatible with Fusion2™ controllers and advanced automation features
- Single‑button rate change for simple field adjustments
- Extreme turndown ratios with no mechanical adjustments required
- Available in a variety of configurations to suit diverse applications
- Optional 316 Stainless Steel head available for higher flow rates where PVC compatibility is not a concern
Design Specifications
- Maximum Pressure: 150 PSI
- Maximum Capacity: 2,544 Gallons/day
- Power: AC or DC motor compatibility
- Control Integration: Compatible with Fusion2™ controller
- Hazardous Ratings : General purpose and hazardous (C1D2) location rated
- Connectivity: Sirius Connect IIoT platform or SCADA
